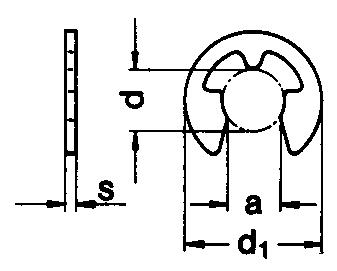

DIN 6799

*All measurements in millimeters (mm)*

d used for a s d1 max
1.5 2 - 2.5 1.28 0.4 4.25
1.9 2.5 - 3 1.61 0.5 4.8
2.3 3 - 4 1.94 0.6 6.3
3.2 4 - 5 2.7 0.6 7.3
4 5 - 7 3.34 0.7 9.3
5 6 - 8 4.11 0.7 11.3
6 7 - 9 5.26 0.7 12.3
7 8 - 11 5.84 0.9 14.3
8 9 - 12 6.52 1 16.3
9 10 - 14 7.63 1.1 18.8
10 11 - 15 8.32 1.2 20.4
12 13 - 18 10.45 1.3 23.4
15 16 - 24 12.61 1.5 29.4
19 20 - 31 15.92 1.75 37.6
24 25 - 38 21.98 2 44.6

 All information is strictly informative
