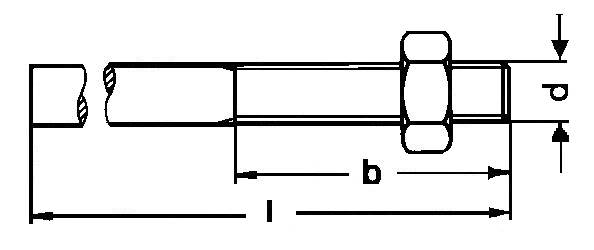

DIN 525

*All measurements in millimeters (mm)*

d l b
M6 130 35
M8 140 40
M10 150 45
M12 170 55
M14 180 60
M16 190 65
M18 200 70
M20 210 75
M22 220 80
M24 230 85
M27 250 90
M30 270 105
M33 290 115
M36 310 125

  All information is strictly informative
