DIN 470

*All measurements in millimeters (mm)*

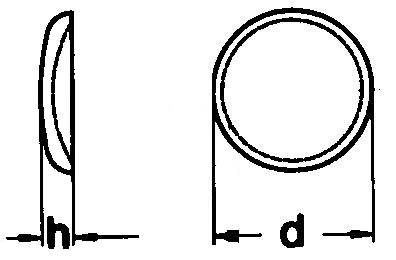

d h r s
10 2.67 12 1.6
12 2.77 16 1.6
14 2.94 19 1.6
16 3.11 22 1.6
18 3.28 25 1.6
20 3.45 28 1.6
25 4.38 34 2
28 4.53 40 2
30 4.77 42 2
32 4.95 45 2
34 5.11 48 2
36 5.36 50 2
38 5.6 52 2
40 5.7 56 2
42 5.8 60 2
45 6.15 63 2
48 6.38 68 2
50 6.62 70 2
52 6.66 75 2
56 7.06 80 2
60 7.47 85 2

 All information is strictly informative
