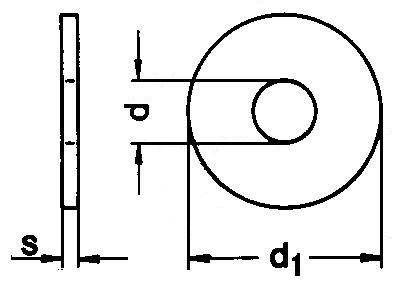

DIN 440

*All measurements in millimeters (mm)*

d

for screw

d1

s

5.5

M5

18

2

6.6

M6

22

2

9

M8

28

3

11

M10

34

3

13.5

M12

44

4

17.5

M16

56

5

22

M20

72

6

24

M23

80

6

26

M24

85

6

30

M29

98

6

 All information is strictly informative
