µûÐÎÂÝĸ£¨ÃÀÖƳߴ磩wing nuts amercia form

*All measurements in millimeters (mm)*

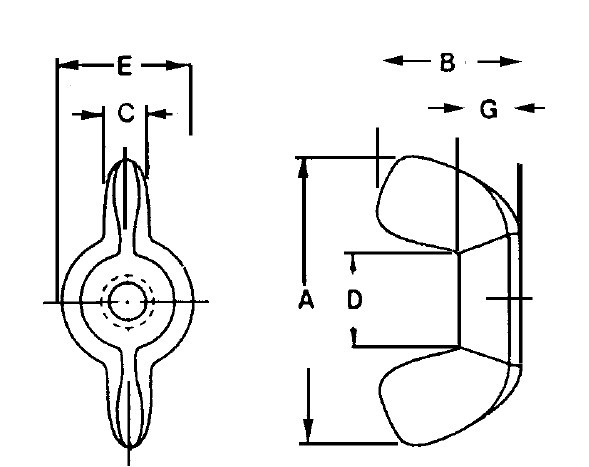

d A(MIN) B(MIN) E(MIN) G(MIN)
M4 19.8 8.6 9.9 3.5
M5 19.8 8.6 9.9 3.5
M6 24.6 10.9 11.4 4.3
M8 28.4 13.5 13 5.1
M10 33.3 16.5 16.3 6.6
M12 46 22.1 21.8 8.9
M16 66.5 33.3 28.7 13

All information is strictly informative
