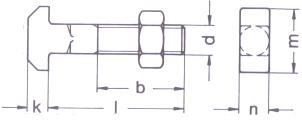

DIN 188
*All measurements in millimeters (mm)*
d
b
k
m
n
M8
22
5.5
18
8
M10
26
7
21
10
M12
30
8
26
12
M16
38
10.5
30
16
M24
54
15
43
24
All information is strictly informative
