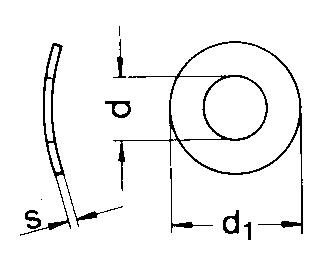

*All measurements in millimeters (mm)*
|
d |
for screw |
d1 |
s |
|
2.2 |
M2 |
4.5 |
0.3 |
|
2.8 |
M2.5 |
5.5 |
0.3 |
|
3.2 |
M3 |
6 |
0.4 |
|
3.7 |
M3.5 |
7 |
0.4 |
|
4.3 |
M4 |
8 |
0.5 |
|
5.3 |
M5 |
10 |
0.5 |
|
6.4 |
M6 |
11 |
0.5 |
|
7.4 |
M7 |
12 |
0.5 |
|
8.4 |
M8 |
15 |
0.5 |
|
10.5 |
M10 |
18 |
0.8 |
